| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 200 |
| प्रतिरूप संख्या।: | बीएच-डब्लूएस | दबाव सीमा: | गेज दबाव, पूर्ण दबाव |
|---|---|---|---|
| सटीकता ग्रेड: | 0.2%,0.5 प्रतिशत | आईपी रेटिंग: | IP68 |
| शुद्ध वजन: | 2.1 किग्रा | डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील |
| आवास सामग्री: | 316L स्टेनलेस स्टील | स्थिरता: | ±0.1% एफ.एस./वर्ष (टाइप) |
| माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर | अधिभार: | ≤ 2x रेटेड रेंज |
| सटीकता @ 25ºC: | ± 0.25% (टाइप।) ± 0.5% (अधिकतम) | परिचालन तापमान: | -20 ~ 100 thec |
| भंडारण तापमान: | -30 ~ 100 thec | विस्फोट प्रूफ रेटिंग: | ExiaIICT6 |
| उत्पादन में संकेत: | 4 ~ 20ma, 0 ~ 10/20ma, 0/1 ~ 5v, 0/1 ~ 10v, 0.5 ~ 4.5V | ||
| प्रमुखता देना: | sewage level sensor IP68,316L stainless steel water level transmitter,high accuracy sewage level sensor |
||

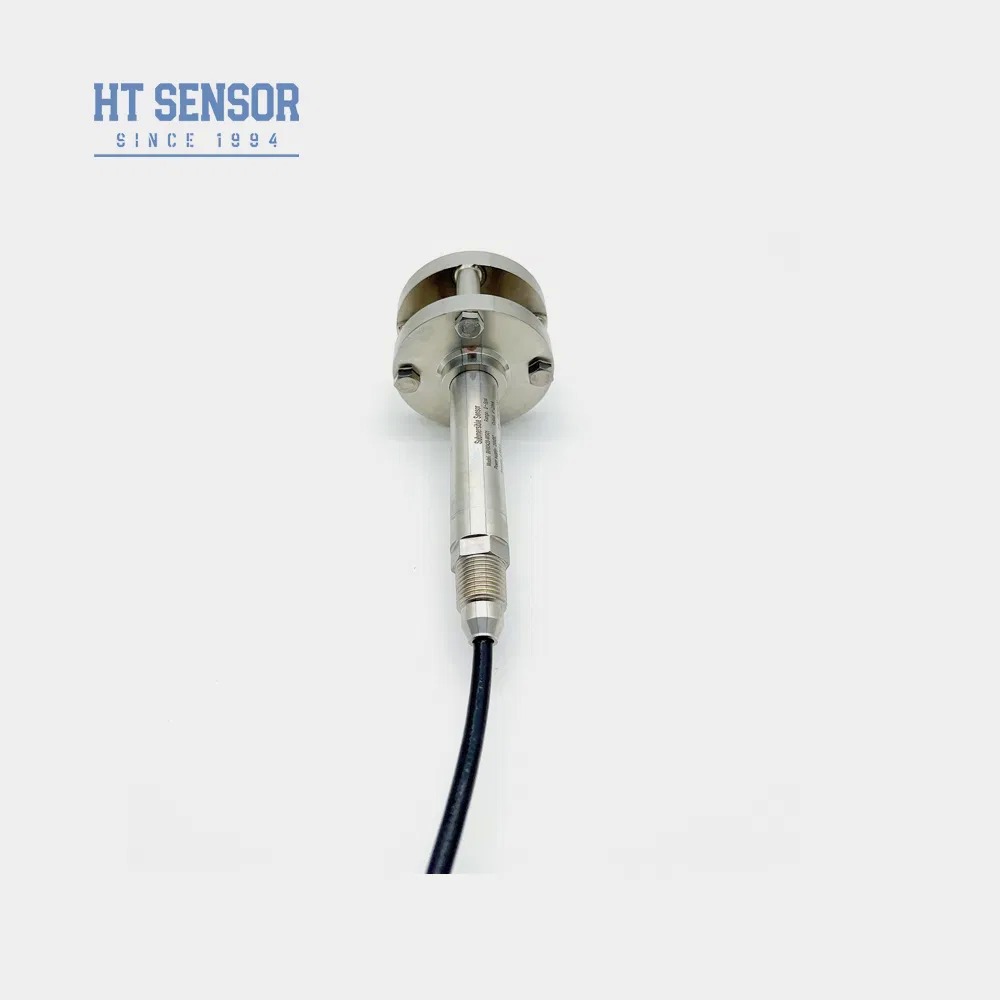

BH93420-WS Sewage Level Sensor utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with full 316L stainless steel construction.
This transmitter is suitable for measuring liquid levels in environments with contaminated liquids, including:
| Measurement Range | 0~10m…400m |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE |
| Supply Voltage | Output Type |
|---|---|
| 12~30VDC | 4~20mA (2/3/4 wire) |
| 5VDC | 0~10/20mA (3 wire), 0/1~5V, 0/1~10V, 0.5~4.5V |
| Code | Option |
|---|---|
| WS | Pressure Transmitter |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| G | Gauge Pressure |
| C1 | PE Cable Material |
