विस्तार जानकारी

प्रतिरूप संख्या।:	BPHT24-IX	मापक माध्यम:	हवा और तरल
सटीकता ग्रेड:	0.5%	दबाव सीमा:	-100kpa...0kpa ~10kpa...100MPa
आईपी रेटिंग:	आईपी65	स्वनिर्धारित:	स्वनिर्धारित
दबाव प्रकार:	गेज दबाव, पूर्ण दबाव, सील दबाव	आवास सामग्री:	304एस.एस
सुरक्षा रेटिंग:	आईपी65	वज़न:	~0.3kg
परिवहन पैकेज:	कार्टन के साथ मानक निर्यात पैकेजिंग	विनिर्देश:	सिलिकॉन दबाव सेंसर
ट्रेडमार्क:	एचटी सेंसर	मूल:	बाओजी, चीन
एचएस कोड:	9026201090	उत्पादन क्षमता:	50000 पीसीएस / वर्ष
प्रमुखता देना:	LCD display pressure transmitter , flat diaphragm silicon sensor , HT series pressure resistance transmitter

उत्पाद विवरण

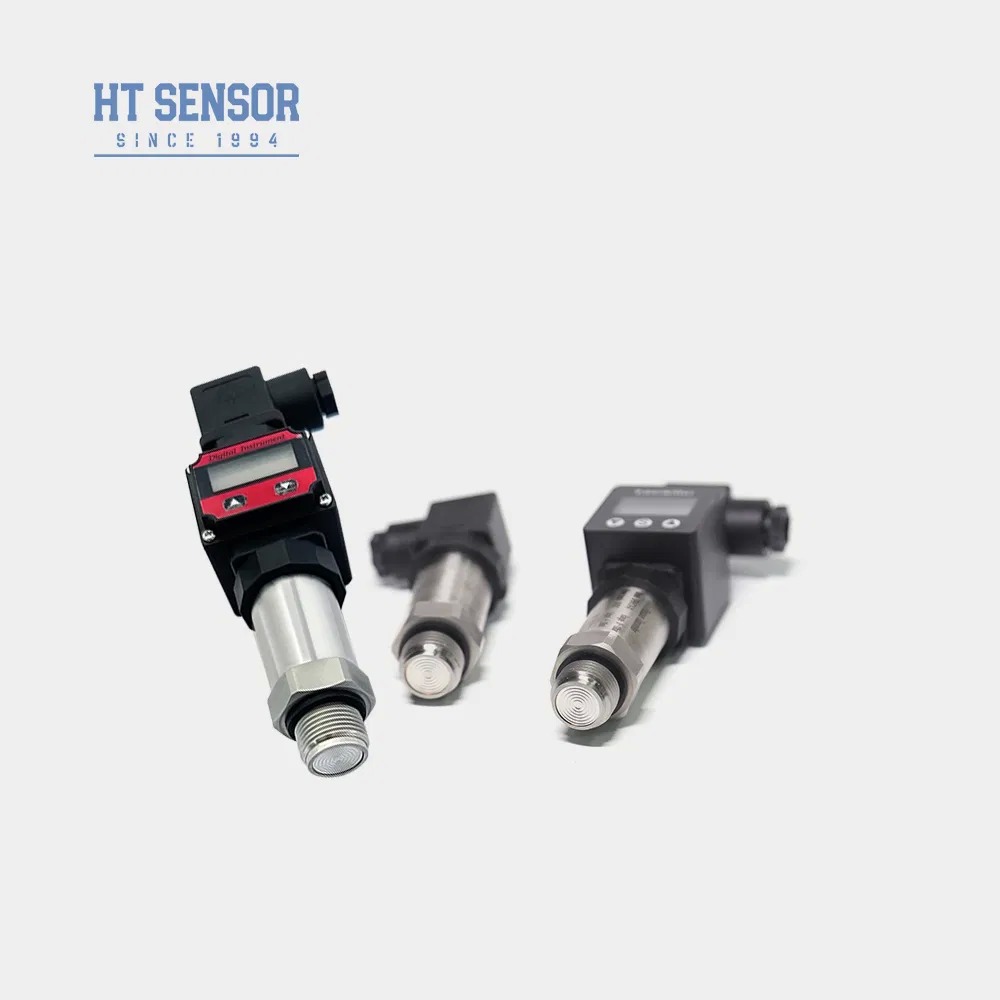

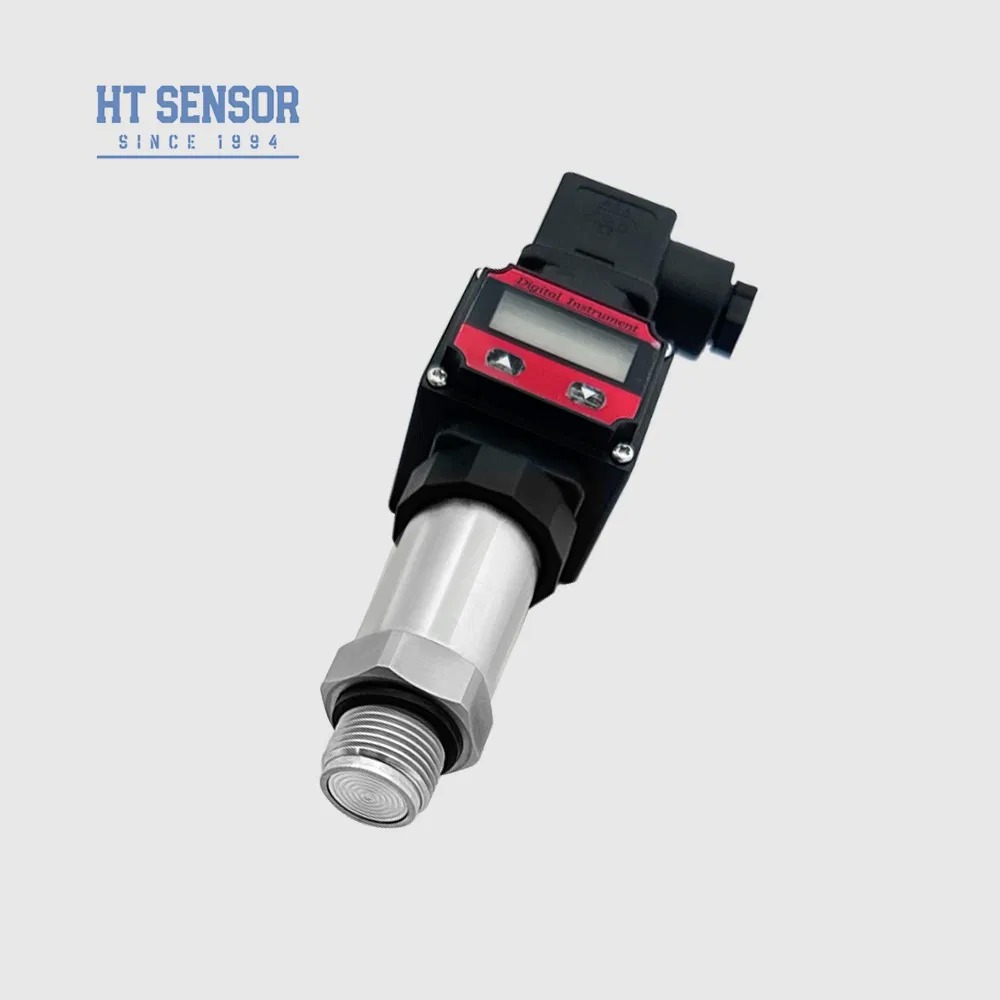

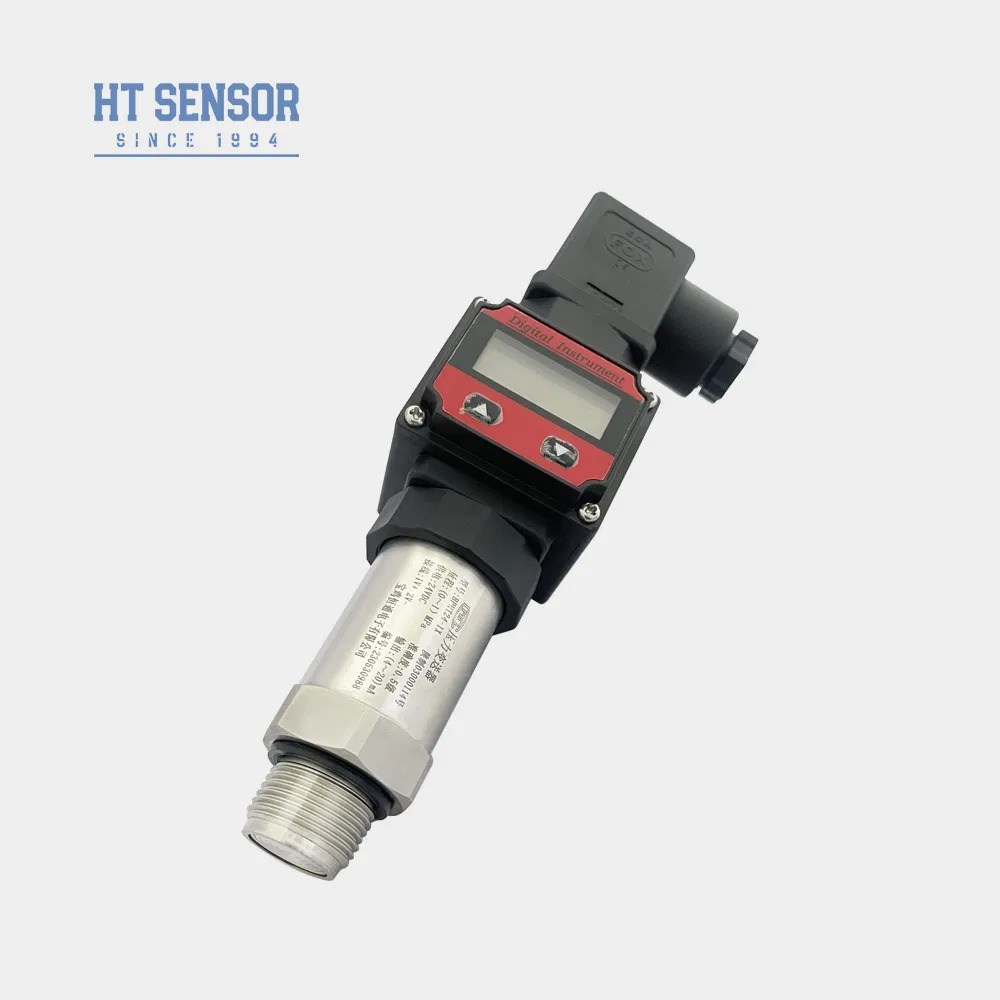

LED LCD display pressure HT series flat diaphragm silicon pressure-resistance transmitter
BPHT24-IX Pressure Transmitter

Introduction:

BPHT24-IX pressure transmitter The signal processing circuit is located inside a stainless steel housing, converting the sensor signal into a standard output signal. This pressure transmitter is primarily used in places where high sanitary conditions are required, ensuring reliable and accurate pressure measurements in hygienic environments.

Product Features:

Various pressure interface options
Designed for hygienic applications to prevent medium scaling
High accuracy with a fully stainless steel structure
Easy to clean.

Applications:

Suitable for measuring non-corrosive gases and liquids with 316L
Ideal for environmental protection and chemical industries
Used in the marine and aviation industries
Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.

Performance Parameters
Measurement Range	0~35Kpa…~35MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)

Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	-20-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.3kg

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0/1~5V
0/1~10V

Type	Hirschmann
Dimension

Selection Examples

Ordering tips

1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.

Order Guide
BP93420XX	Pressure Transmitter
	Code	Outline Construction
	IX	Display Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
		Measurement Range	0~35Kpa…~20MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC
				S2	1~5VDC	S6	0~10VDC
					Code	Pressure Connection
					J1	M20×1.5
					J2	G1/2
					J3	1/2NPT
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output

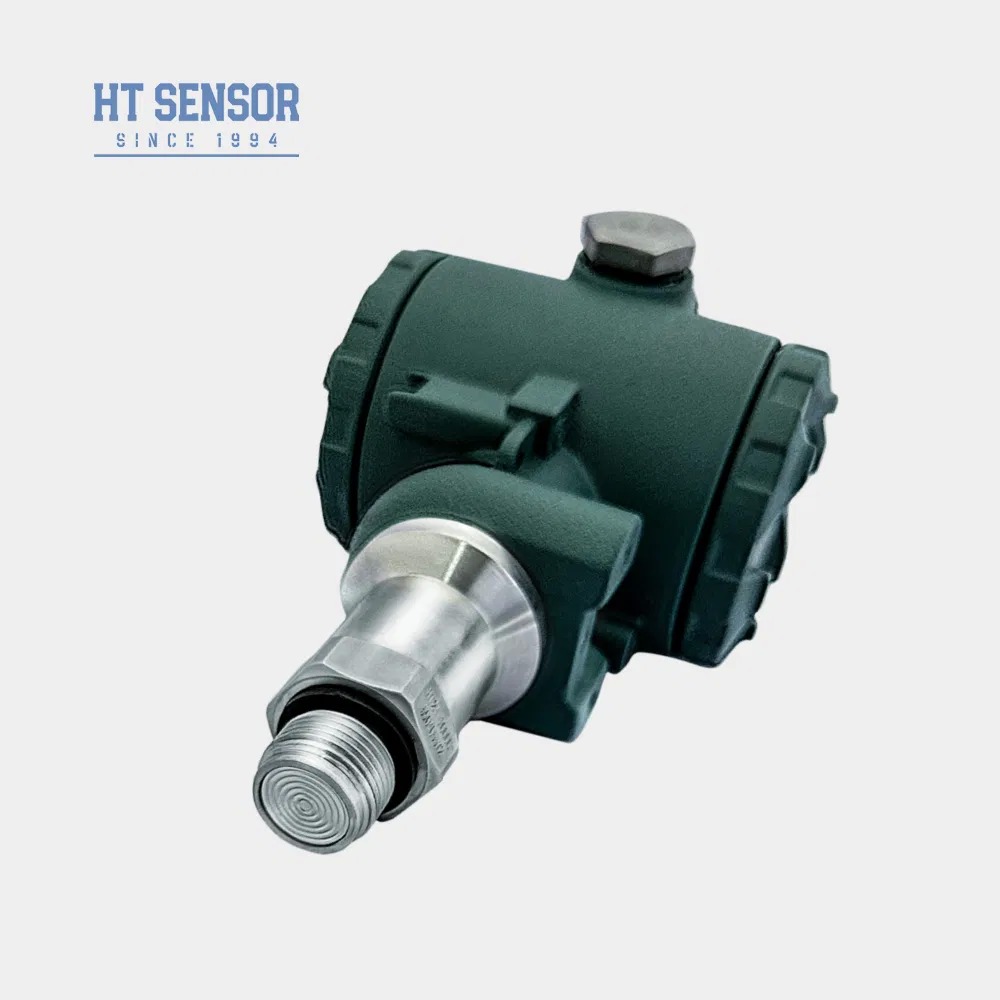

						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure

Company

Q&A

1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

प्रमाणन:	CE, RoHS

न्यूनतम आदेश मात्रा:	1
मूल्य:	50

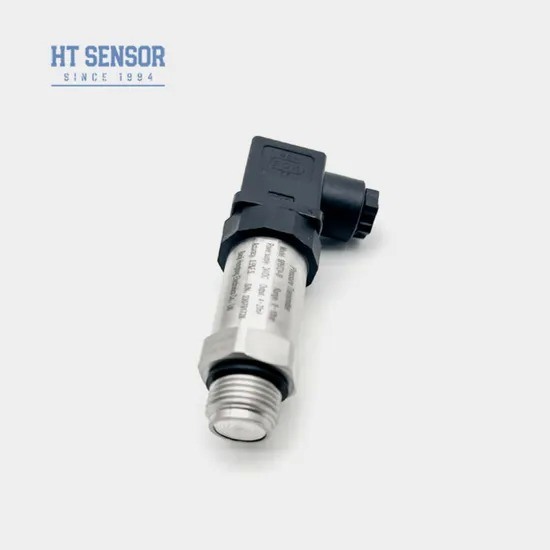

LCD Display Pressure Ht Series Flat Diaphragm Silicon Sensor Pressure-Resistance Transmitter
