| जलरोधक: | IP65,IP66,IP67,IP68 वैकल्पिक | मापक माध्यम: | गैस या तरल |
|---|---|---|---|
| माउन्टिंग का प्रकार: | प्रत्यक्ष या दूरस्थ | ट्रांसमीटर प्रकार: | कैपेसिटिव दबाव ट्रांसमीटर |
| प्रकार: | इलेक्ट्रॉनिक | पोर्ट आकार: | 1/4 एनपीटी |
| संपर्क: | Φ 6 पगोडा मुंह H59 तांबा | गुणवत्ता: | उच्च गुणवत्ता |
| गारंटी: | 2 साल | परिवहन पैकेज: | कार्टन के साथ मानक निर्यात पैकेजिंग |
| बिजली का संपर्क: | M20*1.5 | विचित्र सामग्री: | स्टेनलेस स्टील |
| केशिका: | हाँ | अनुकूलन: | ओईएम |
| द्वितीयक चर: | स्थैतिक दबाव | ||
| प्रमुखता देना: | IP65 Differential Pressure Sensor,500PA~200kpa Pressure Transmitter,24VDC Differential Pressure Transmitter |
||

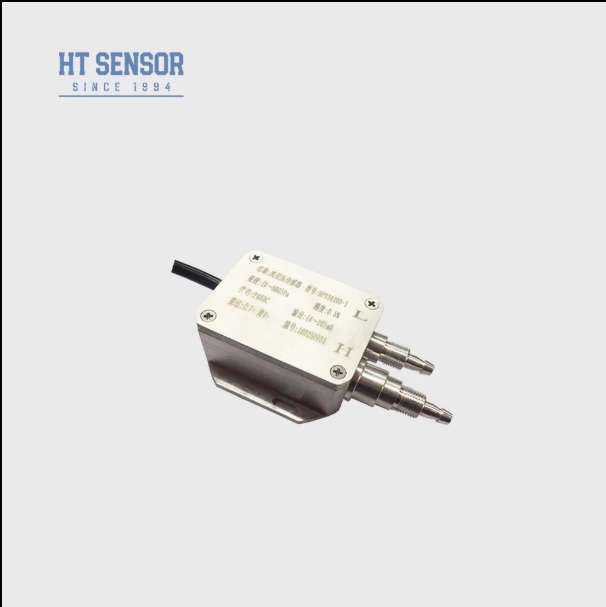

The BP93420D-I differential pressure transmitter utilizes the piezoresistive effect of semiconductor silicon material to convert differential pressure into an electrical signal. Designed for measuring small differential pressures of non-corrosive dry gases, it's ideal for applications in boiler air supply, underground ventilation, and cleanroom pressure monitoring.
| Model Number | BP93420D-I |
|---|---|
| Measuring Medium | Gas |
| Accuracy Grade | 1.0G |
| Pressure Range | 500PA~200kpa |
| IP Rating | IP65 |
| Power Supply | 24VDC |
| Output Signal | 4-20mA /0-10VDC |
| Housing Material | Aluminium alloy |
| Connection | φ6 air nozzle |
| Measurement Range | 0-500Pa to 0-200KPa (multiple ranges available) |
|---|---|
| Pressure Type | Differential Pressure |
| Static Pressure | 2 times of rated range |
| Overload Capacity | ≤ 1.5 times of rated range |
| Accuracy @ 25ºC | ±0.5% (Typical) / ±1% (Maximum) |
| Temperature Drift | ±2.5%F.S/ºC (Typical) / ±3%F.S/ºC (Maximum) |
| Operating Temperature | -20ºC to 80ºC |
| Storage Temperature | -40ºC to 100ºC |
| Package Size | 14.20cm × 5.50cm × 8.00cm |
|---|---|
| Gross Weight | 0.250kg |
| Transport Package | Carton |
