| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 20 |
| प्रतिरूप संख्या।: | BP93420-आईबी | मापक माध्यम: | तरल |
|---|---|---|---|
| सटीकता ग्रेड: | 0.5 ग्राम | दबाव सीमा: | 0kpa~10kpa...100MPa |
| आईपी रेटिंग: | IP65 | दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव |
| आवास सामग्री: | 316L | दीर्घकालिक स्थिरता: | +-0.2%F.S./Year ((टाइप) |
| डायाफ्राम सामग्री: | 316L | परिचालन तापमान: | -20 ~ C ~ 80ºC |
| भंडारण तापमान: | -40ºC ~ 120ºC | कंपन प्रतिरोध: | 10g, 55Hz ~ 2kHz |
| इन्सुलेशन प्रतिरोध: | 100 मीटर 100VDC | विस्फोट प्रूफ रेटिंग: | पूर्व डीबी आईआईसी टी6 जीबी |
| वज़न: | ~0.15kg | ||
| प्रमुखता देना: | 4-20mA pressure transmitter for liquid,IP65 industrial pressure sensor,0.5G accuracy pressure transmitter |
||

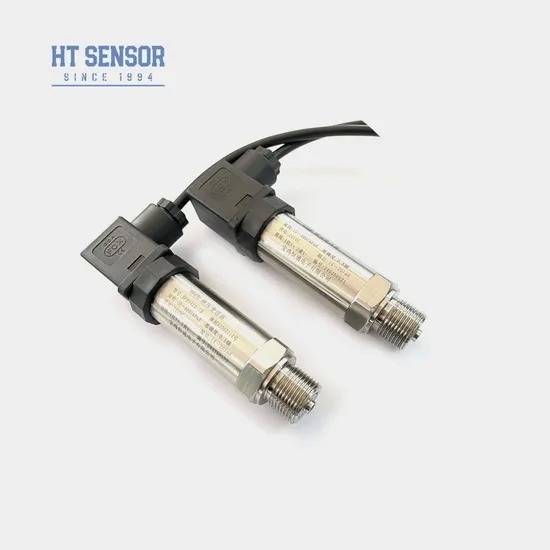

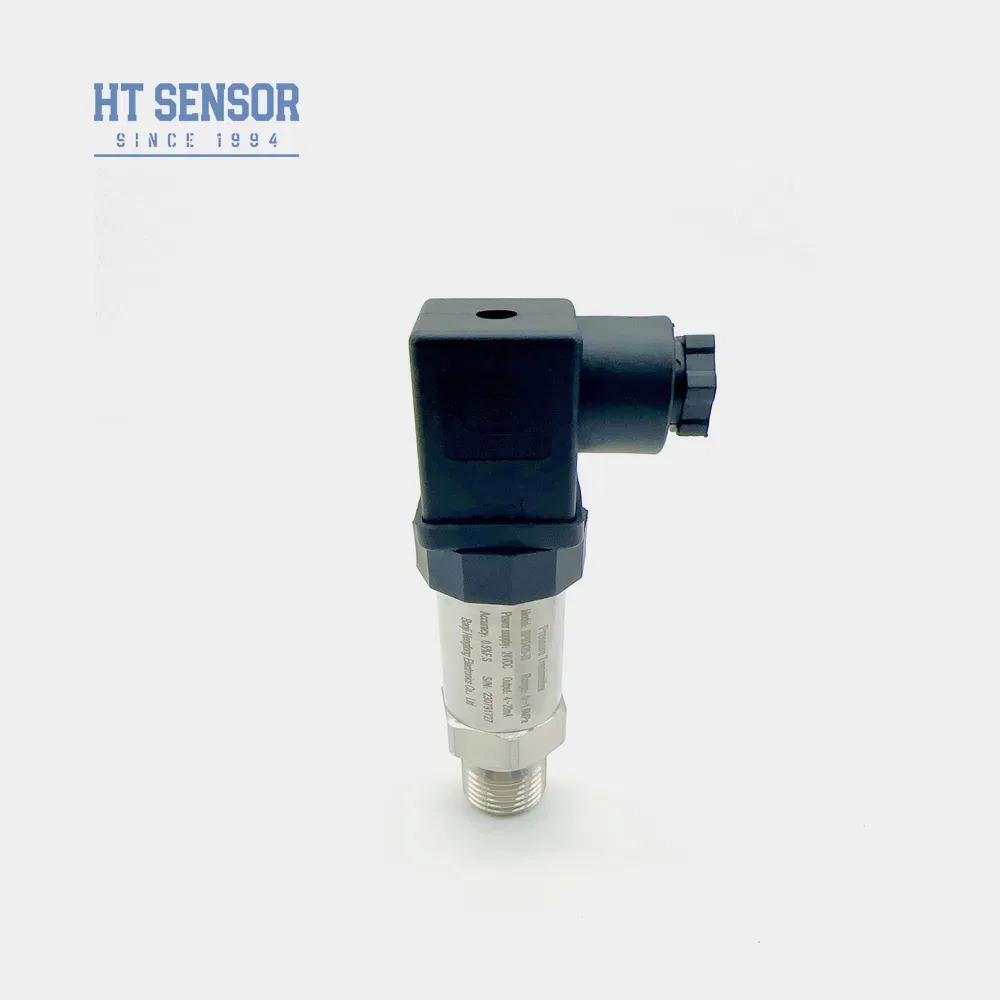

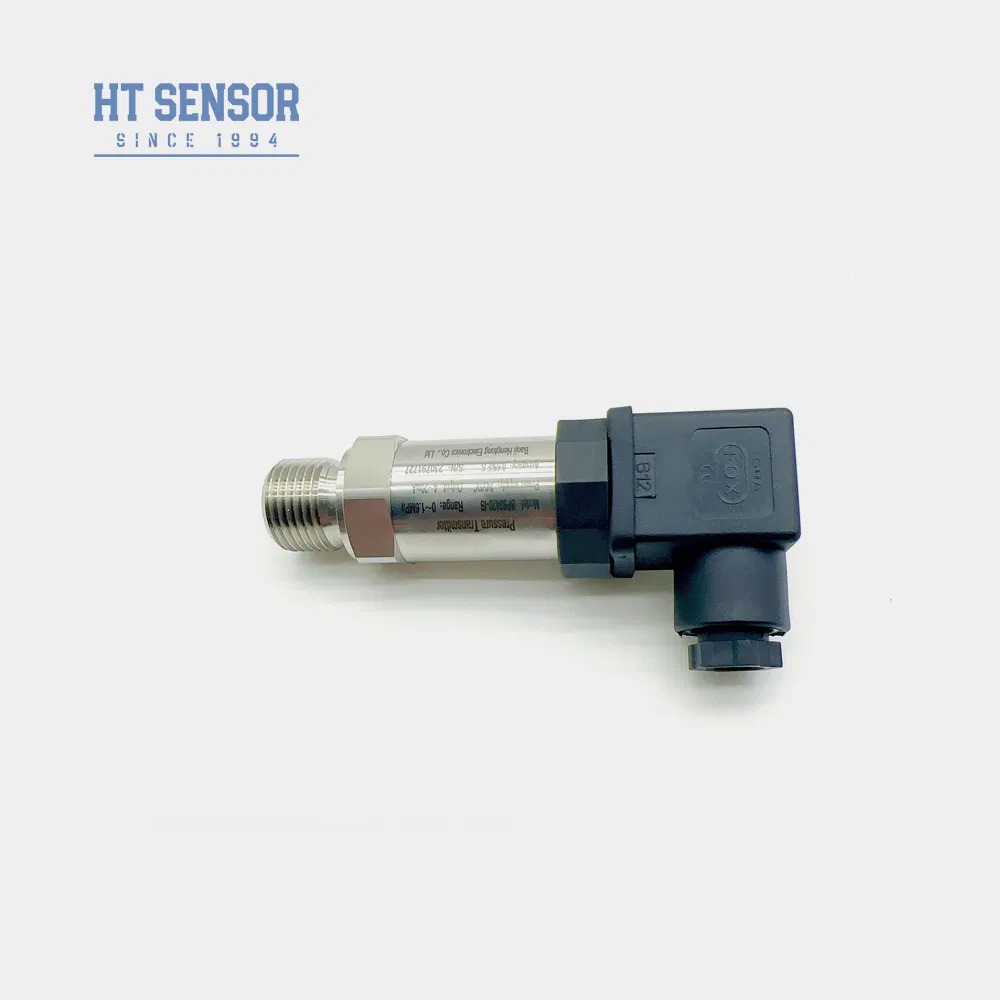

The BP93420IB pressure transmitter utilizes HT series diffusion silicon isolation oil-filled core technology for signal measurement. Housed in stainless steel, it converts sensor signals into standard output signals. Rigorous testing and aging screening ensure stable, reliable performance.
| Measurement Range | -100kPa...0kPa ~ 10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
| Code | Configuration Option |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| J1 | M20×1.5 Pressure Connection |
| G | Gauge Pressure Type |
Our transmitters offer high precision (±0.25% typical), durable stainless steel construction, and customizable configurations for various industrial applications.
Yes, our engineering team provides OEM/ODM services to meet specific application requirements.
We can produce 30,000 units monthly. Contact our sales team for large order planning.
