| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 30 |
| दबाव सीमा: | 0-1m-400 Mh2o | सटीकता ग्रेड: | 0.25%,0.5% |
|---|---|---|---|
| आईपी रेटिंग: | IP68 | शुद्ध वजन: | 0.3 किग्रा |
| डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील | आवास सामग्री: | 304एस.एस |
| उत्पादन में संकेत: | 4-20ma | बिजली की आपूर्ति: | 24VDC |
| माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर | अधिभार क्षमता: | ≤ 2x रेटेड रेंज |
| repeatability: | ± 0.03% (टाइप।) ± 0.05% एफएस (अधिकतम।) | परिचालन तापमान: | -20~80ºC |
| भंडारण तापमान: | -30 ~ 100 thec | इन्सुलेशन प्रतिरोध: | > = 100m@@100vdc |
| विस्फोट प्रूफ रेटिंग: | ExiaIICT6 | ||
| प्रमुखता देना: | explosion-proof water level transmitter,IP68 liquid level sensor,400mH2O pressure transmitter |
||

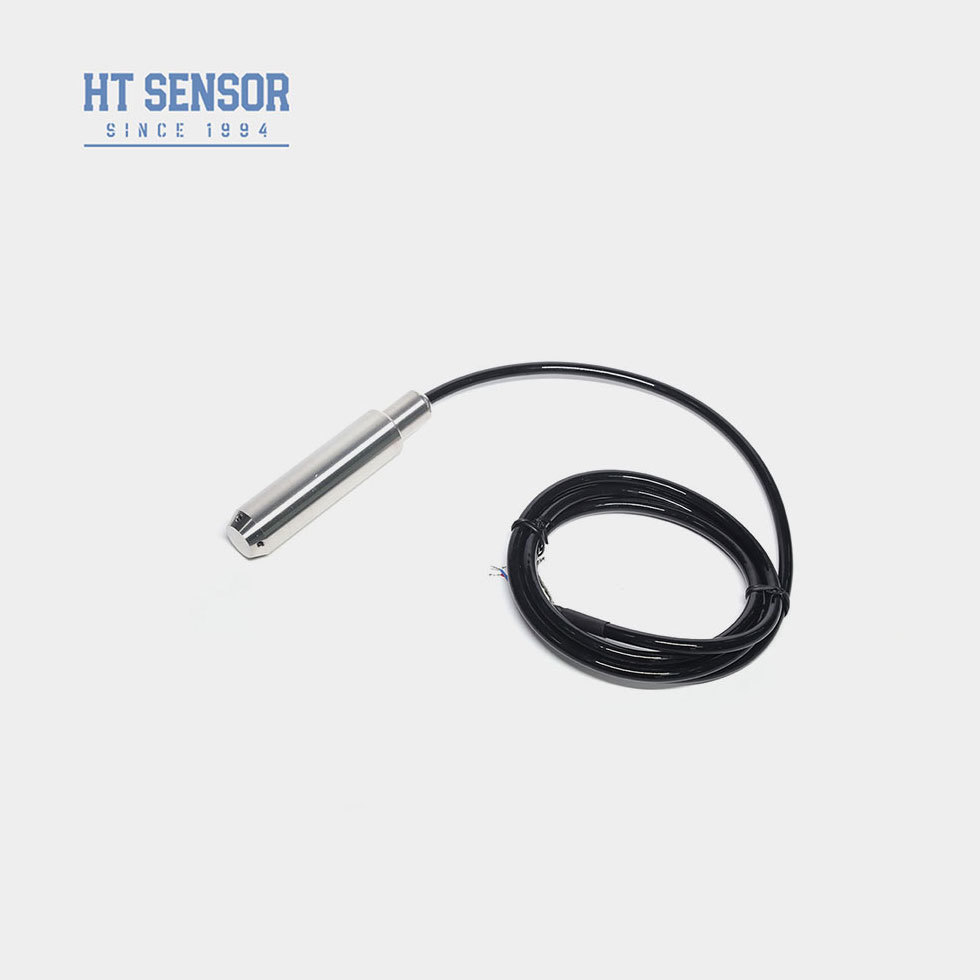

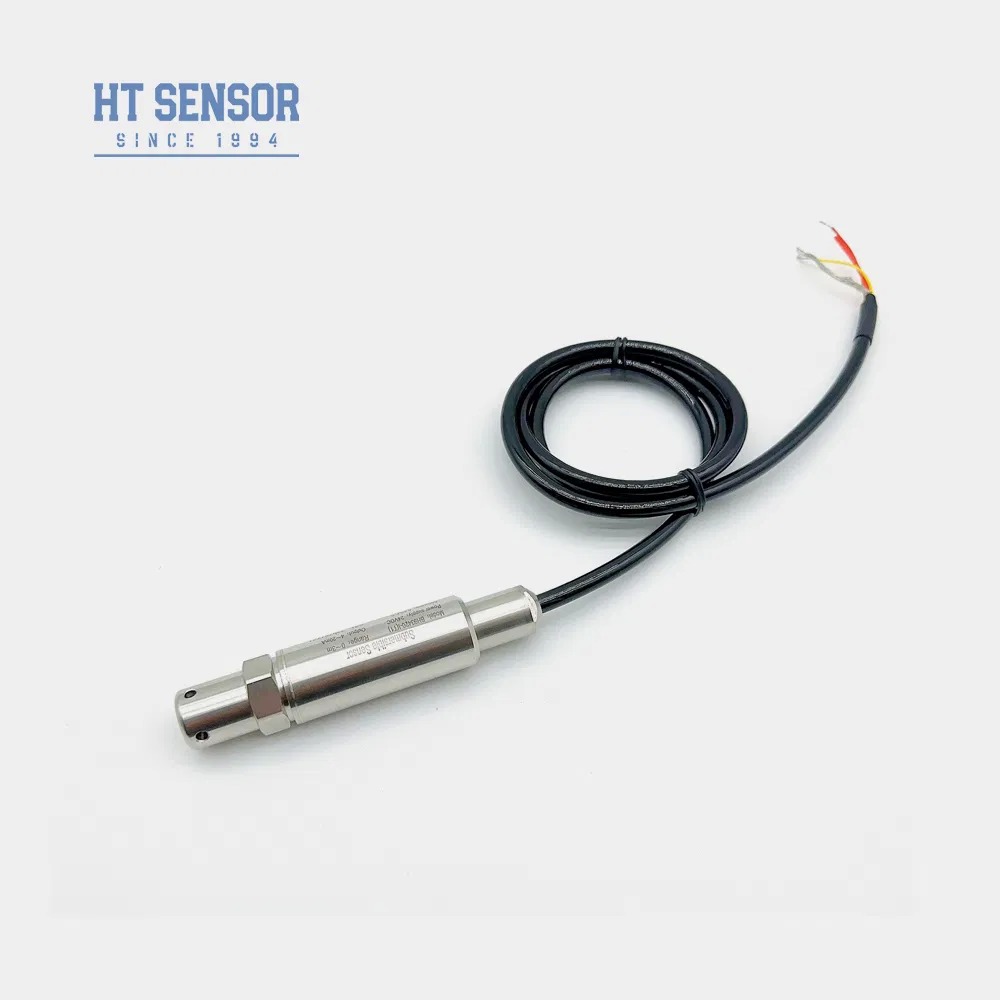

The BH93420-I is a water level transmitter that uses HT series piezoresistive isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, its sensing part is completely sealed with stainless steel for excellent waterproof performance. Rigorous high and low-temperature compensation and aging tests ensure high reliability and stability.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| Code | Option |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
A: Our facilities can produce up to 30,000 units monthly. Contact sales for large orders.
