| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 31 |
| प्रतिरूप संख्या।: | BP93420-IX | मापक माध्यम: | तरल |
|---|---|---|---|
| सटीकता ग्रेड: | ≤0.5%F.S | दबाव सीमा: | -100kpa...0kpa ~10kpa...100MPa |
| आईपी रेटिंग: | IP65 | दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव |
| आवास सामग्री: | 316L स्टेनलेस स्टील | आवृत्ति प्रतिक्रिया: | 2.4 किलोहर्ट्ज़ |
| अधिभार क्षमता: | रेटेड रेंज के 1.5 बार | परिचालन तापमान: | -20 ~ C ~ 80ºC |
| भंडारण तापमान: | -40ºC ~ 120ºC | डायाफ्राम सामग्री: | 316L |
| इन्सुलेशन प्रतिरोध: | 100 मीटर 100VDC | वज़न: | ~0.25 किग्रा |
| वोल्टेज आपूर्ति: | 12 ~ 30VDC, 5VDC, 3.6 ~ 30V / बैटरी | ||
| प्रमुखता देना: | Digital Pressure Transmitter 0.5% Accuracy,IP65 Industrial Pressure Sensor,BP93420-IX Pressure Transmitter with Warranty |
||
| Measurement Range | -100kPa...0kPa ~10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g, 55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |

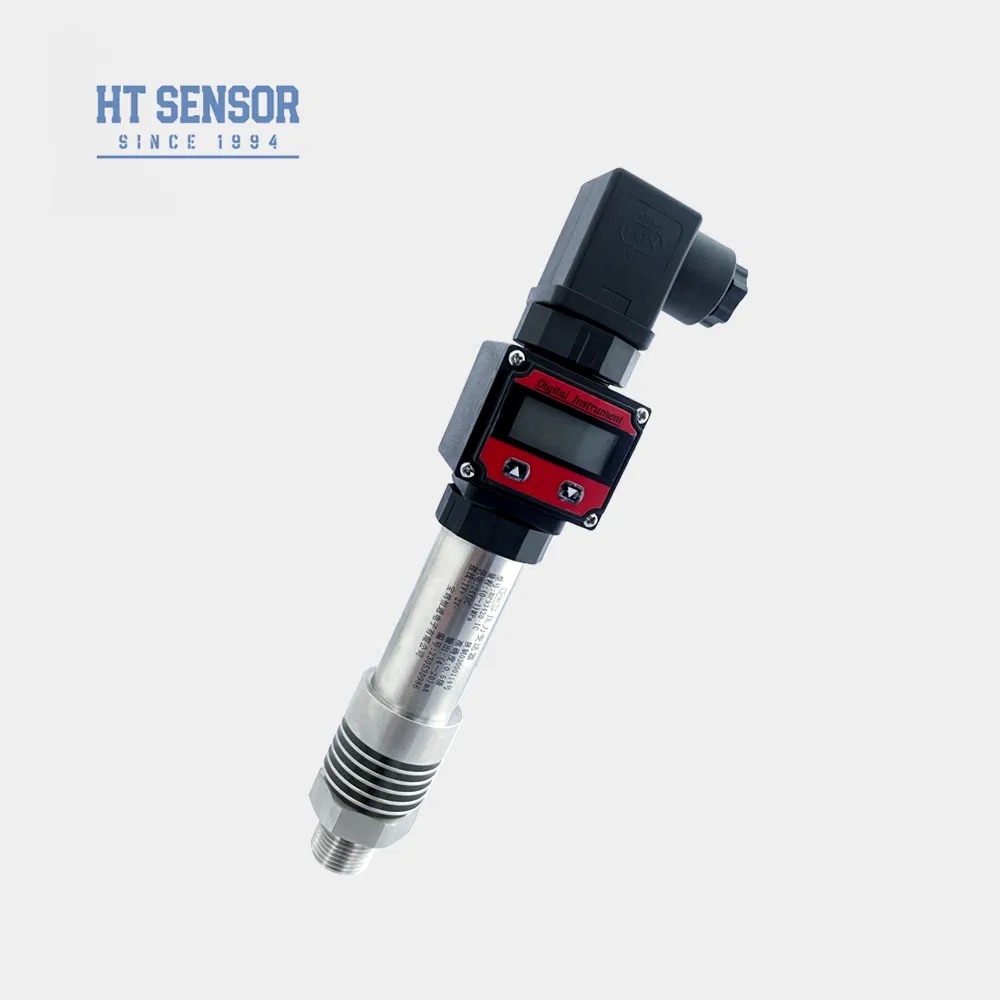

| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| Additional codes and configurations available - see full specifications | |
