| प्रमाणन: | CE, RoHS |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 48 |
| प्रतिरूप संख्या।: | BP93420-III | मापक माध्यम: | तरल |
|---|---|---|---|
| सटीकता ग्रेड: | 0.5% | दबाव सीमा: | -100kpa...0kpa ~10kpa...100MPa |
| आईपी रेटिंग: | IP65 | दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव |
| आवास सामग्री: | 316L | आवृत्ति प्रतिक्रिया: | 2.4 किलोहर्ट्ज़ |
| वज़न: | ~1.2 किलोग्राम | अधिभार: | रेटेड रेंज के 1.5 बार |
| repeatability: | ≤ ± 0.1% एफएस | दीर्घकालिक स्थिरता: | ± 0.1%एफएस/वर्ष (विशिष्ट) ± 0.2%एफएस/वर्ष (अधिकतम) |
| परिचालन तापमान: | -20 ~ C ~ 80ºC | डायाफ्राम सामग्री: | 316L |
| विस्फोट प्रूफ रेटिंग: | पूर्व डीबी आईआईसी टी6 जीबी | ||
| प्रमुखता देना: | industrial pressure sensor with IP65,316L pressure transmitter 0.5% accuracy,BP93420-III pressure transmitter IP65 |
||

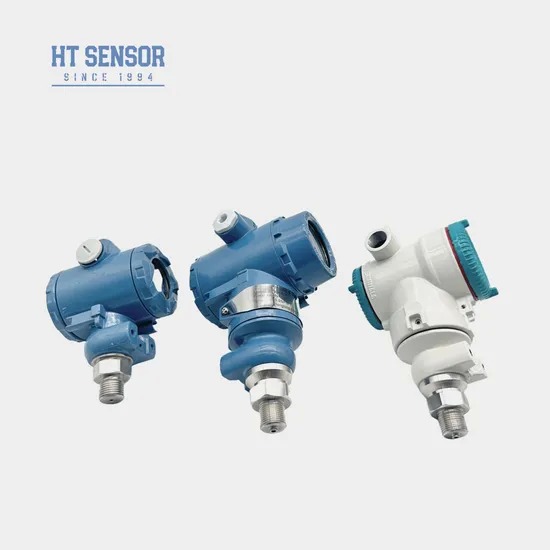

The BP93420III pressure transmitter utilizes HT series silicon piezoresistive isolation oil-filled core as the signal measuring element. The signal processing circuit converts the sensor signal into standard output signals. Rigorous testing and aging screening of components ensures stable, reliable performance with strong anti-interference capability.
| Parameter | Specification |
|---|---|
| Measurement Range | -100kPa...0kPa ~10kPa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Description |
|---|---|
| BP93420XX | Pressure Transmitter |
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm/High-temperature Pressure Transmitter |
