| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 38 |
| प्रतिरूप संख्या।: | BH93420-I | दबाव सीमा: | गेज दबाव, पूर्ण दबाव |
|---|---|---|---|
| सटीकता ग्रेड: | 0.25%,0.5% | आईपी रेटिंग: | IP68 |
| शुद्ध वजन: | 0.3 किग्रा | डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील |
| शेल सामग्री: | 304एस.एस या 316एल | उत्पादन में संकेत: | 4-20mA और इसी प्रकार |
| माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर | अधिभार क्षमता: | ≤ 2x रेटेड रेंज |
| परिचालन तापमान: | -20~80ºC | भंडारण तापमान: | -30 ~ 100 thec |
| विस्फोट प्रूफ रेटिंग: | ExiaIICT6 | संरक्षण रेटिंग: | आईपी67, आईपी68 |
| केबल सामग्री: | पॉलीथीन, पॉलीयूरेथेन | ||
| प्रमुखता देना: | HT static pressure level transmitter,water level transmitter with IP68,level transmitter 0.25% accuracy |
||

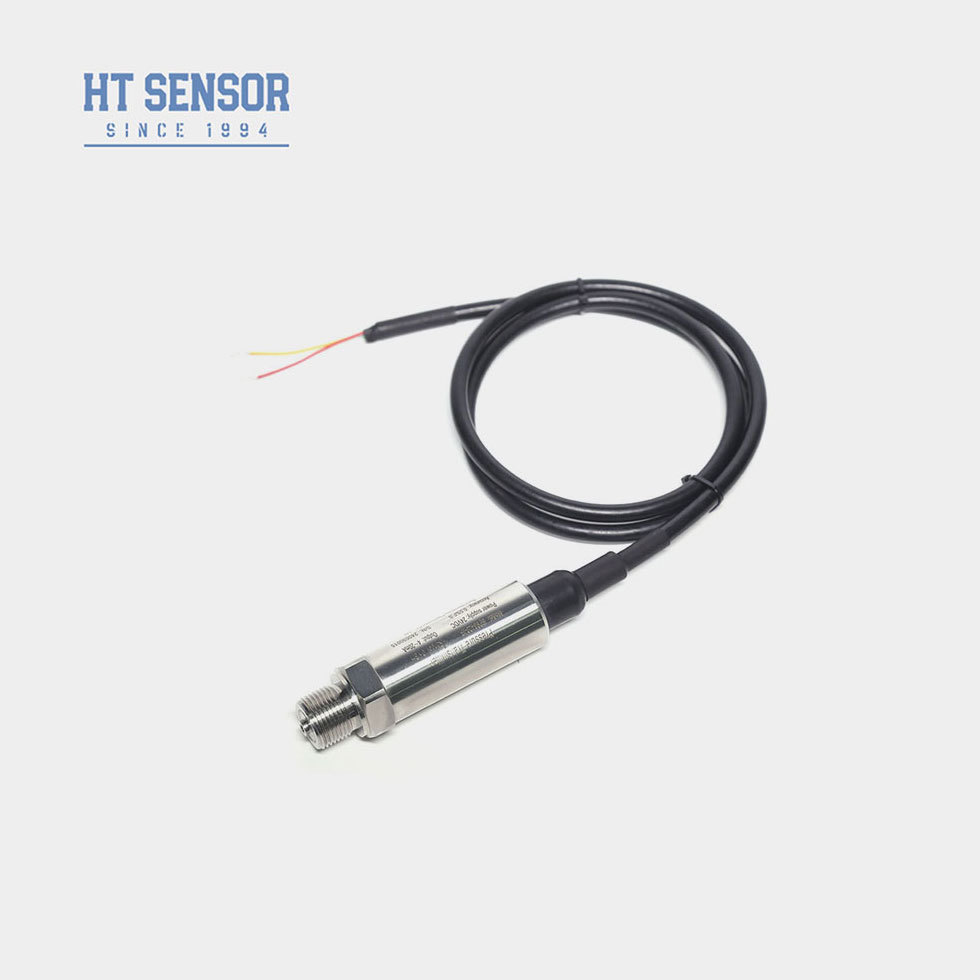

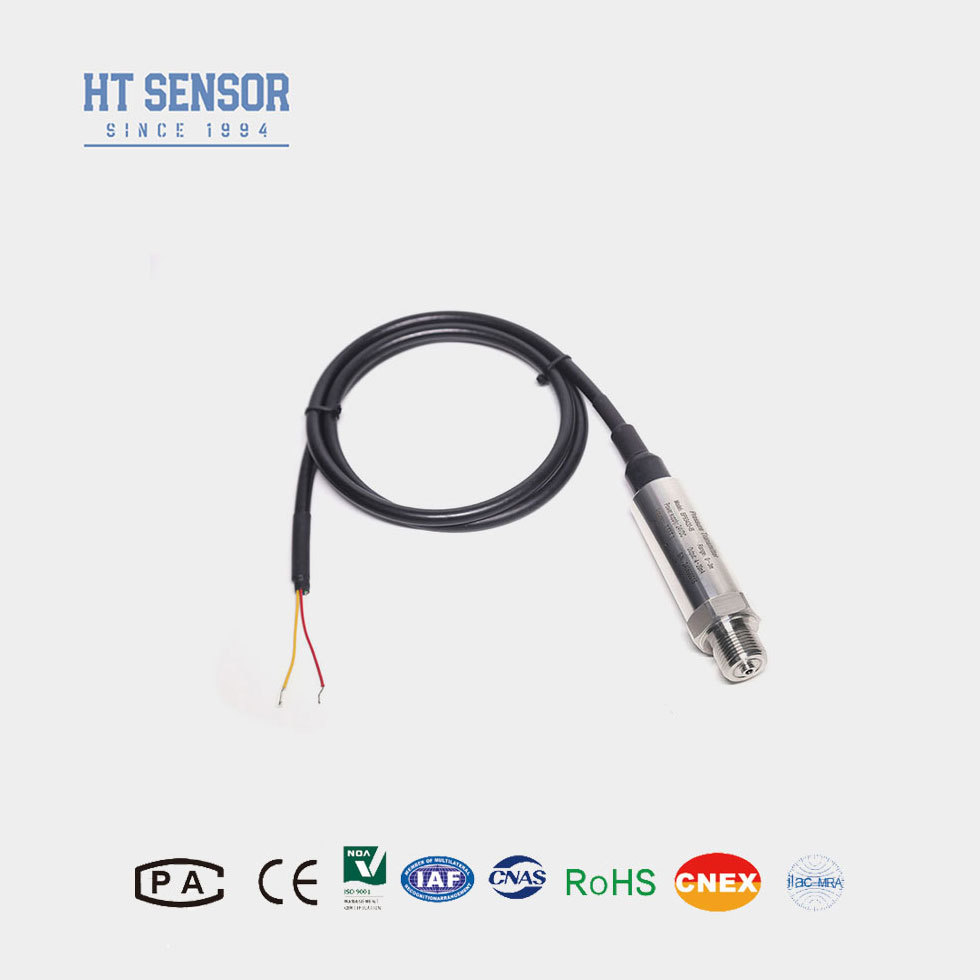

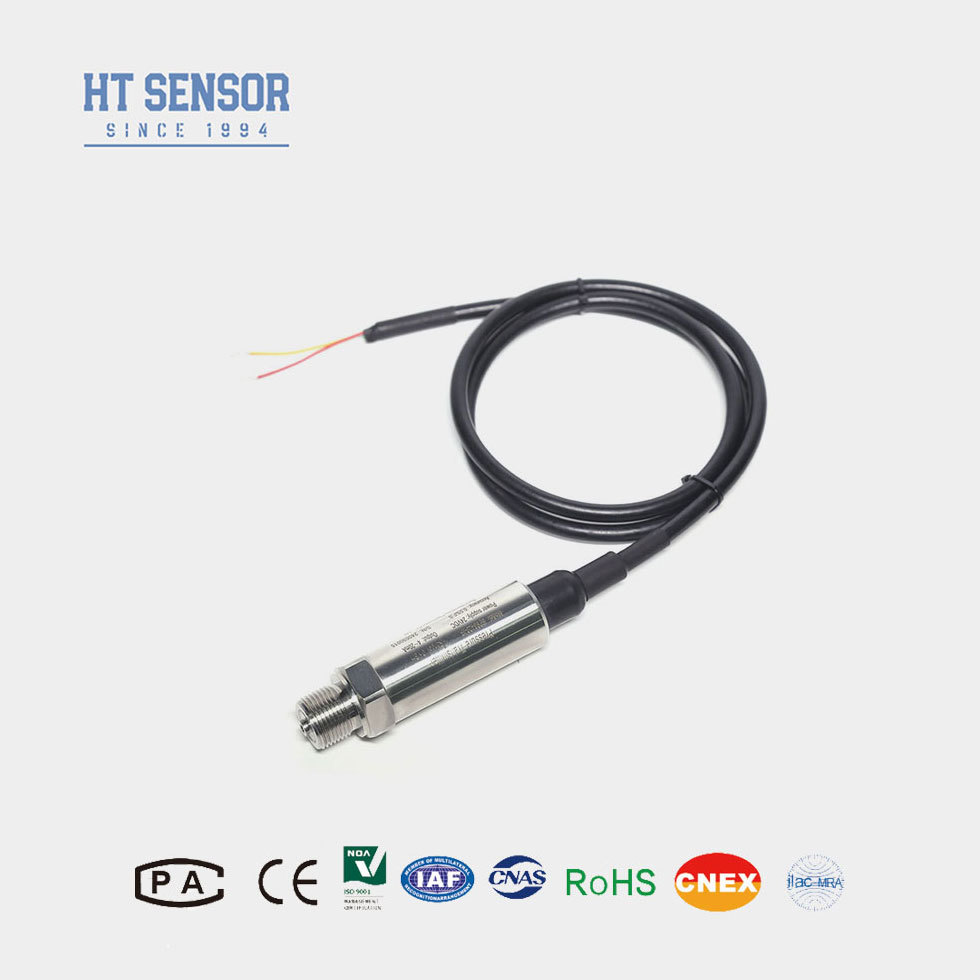

BH93420-I Liquid Level Transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. It features a fully welded stainless steel housing with hexagonal and water guide head design, employing waterproof sealing technology to meet various installation requirements and adapt to different application scenarios.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V |
| BH93420 | Code | Outline Construction |
| IT | Pressure Transmitter | |
| Measurement Range | 0~10m...400m | |
| Code | Power Supply | |
| D1 | 24VDC | |
| D2 | 5VDC | |
| D3 | Other | |
| Code | Output Signal | |
| S1 | 4~20mADC | S5: 0~20mADC |
| S2 | 1~5VDC | S6: 0~10VDC |
| S3 | 0~5VDC | S7: 0.5~4.5VDC |
| S4 | 0~10mADC | S8: RS485 |
| Code | Pressure Type | |
| G | Gauge Pressure | |
| A | Absolute Pressure | |
| S | Sealed Reference Pressure | |
| Code | Material | |
| 01 | 304 Stainless Steel | |
| 02 | 316L Stainless Steel | |
| Code | Cable Material | |
| C1 | PU | |
| C2 | PTFE |
