| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 100 |
| दबाव सीमा: | 0-1m-400 Mh2o | डिस्प्ले प्रकार: | नेतृत्व किया |
|---|---|---|---|
| सटीकता ग्रेड: | 0.1%,0.25% | आईपी रेटिंग: | IP68 |
| शुद्ध वजन: | 1.6 किग्रा | डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील |
| माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर | दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव |
| अधिभार क्षमता: | ≤ 2x रेटेड रेंज | परिचालन तापमान: | -20~80ºC |
| भंडारण तापमान: | -30 ~ 100 thec | आवास सामग्री: | कास्ट एल्यूमीनियम, स्टेनलेस स्टील 1CR18NI9TI |
| इन्सुलेशन प्रतिरोध: | > = 100m@@100vdc | विस्फोट प्रूफ रेटिंग: | ExiaIICT6 |
| उत्पादन में संकेत: | हार्ट के साथ 4 ~ 20ma | ||
| प्रमुखता देना: | IP68 water level transmitter,400mH2O range liquid level sensor,submersible water level transmitter |
||

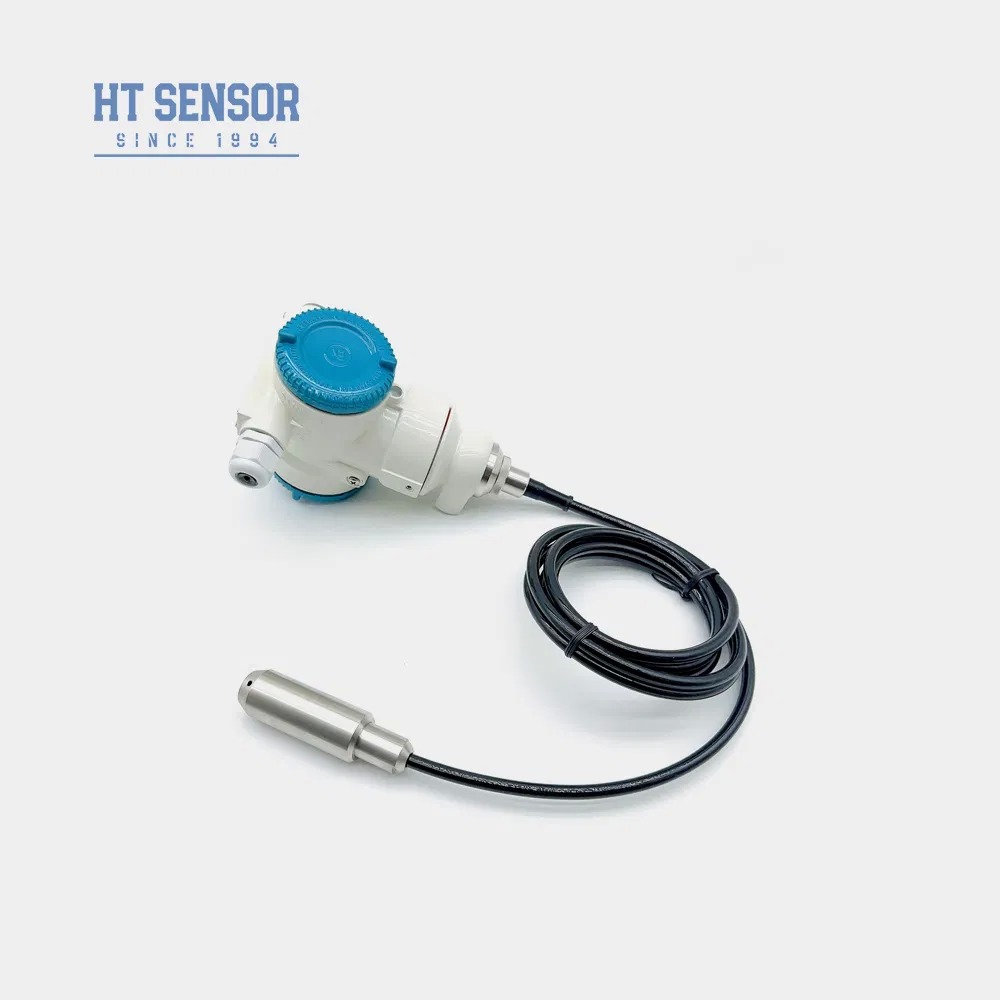

The BHZ93420-III insertion-type intelligent liquid level transmitter features a high-precision piezoresistive silicon pressure sensor as its signal measuring element. It measures static pressure proportional to liquid level and utilizes HART communication protocol for digital signal transmission and two-way communication.
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.6Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Pin | Connection | Wire Color |
|---|---|---|---|
| 4-20mA (HART) | 1 | V+ | Red |
| 2 | V- | Yellow | |
| 3 | NC | ||
| 4 | NC |
| Category | Code | Option |
|---|---|---|
| Outline Construction | B4 | 2088 with display |
| B5 | 3051 | |
| B6 | 3051A | |
| Pressure Type | G | Gauge Pressure |
| A | Absolute Pressure | |
| S | Sealed Reference Pressure | |
| Cable Material | C1 | PE |
| C2 | PU | |
| C3 | PTFE |
