| प्रमाणन: | CE, RoHS |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 39 |

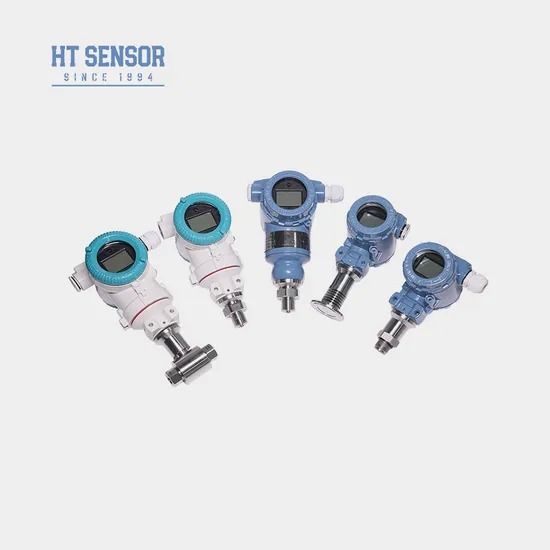

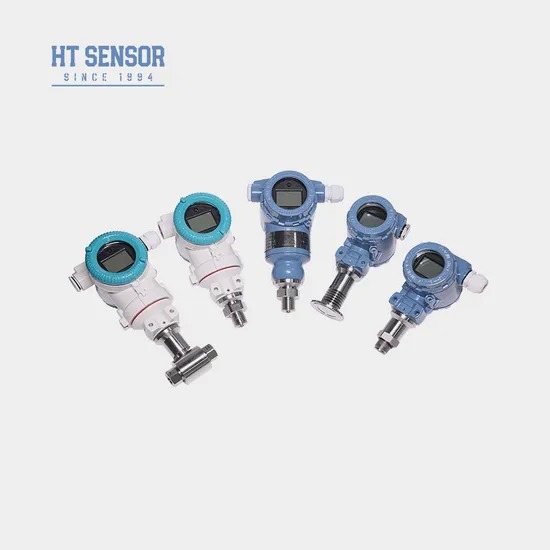

| प्रतिरूप संख्या।: | BPHT24-III | मापक माध्यम: | तरल |
|---|---|---|---|
| सटीकता ग्रेड: | 0.5 ग्राम | दबाव सीमा: | 0kpa~35kpa...20MPa |
| आईपी रेटिंग: | IP65 | दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव |
| आवास सामग्री: | 316L | वज़न: | 0.8 किग्रा |
| माप श्रेणी: | 0~35Kpa...~20MPa | अधिभार: | रेटेड रेंज के 1.5 बार |
| सटीकता @ 25ºC: | ± 0.25% (विशिष्ट)% 0.5% (अधिकतम) | दीर्घकालिक स्थिरता: | ± 0.1%एफएस/वर्ष (टाइप।) ± 0.2%एफएस/वर्ष (अधिकतम।) |
| परिचालन तापमान: | -20 ~ C ~ 80ºC | भंडारण तापमान: | -40ºC ~ 120ºC |
| इन्सुलेशन प्रतिरोध: | 100 मीटर 100VDC | ||
| प्रमुखता देना: | LCD pressure sensor transmitter,IP65 industrial pressure sensor,0.5G accuracy pressure sensor |
||
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.8kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Description |
|---|---|
| BPHT24 | Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| T | High-temperature resistant Pressure Transmitter |
