| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 50 |
| प्रतिरूप संख्या।: | BH93420-III | उत्पादन में संकेत: | एनालॉग प्रकार |
|---|---|---|---|
| आउटपुट स्थिति: | संकेत आउटपुट | उत्पादन प्रक्रिया: | सबमर्सिबल प्रकार |
| जांच प्रकार: | जांच प्रकार | आउटपुट फॉर्म: | दबाव मूल्य |
| आईपी रेटिंग: | IP68 | शुद्ध वजन: | 0.6 किग्रा |
| डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील | शुद्धता: | 0.25%, 0.3%, 0.5% |
| केबल सामग्री: | पीई, पीयू, पीटीएफई | माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर |
| दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव | अधिभार क्षमता: | ≤ 2x रेटेड रेंज |
| परिचालन तापमान: | -20~80ºC | ||
| प्रमुखता देना: | IP68 water level sensor,316L stainless steel water transmitter,high accuracy water level sensor |
||

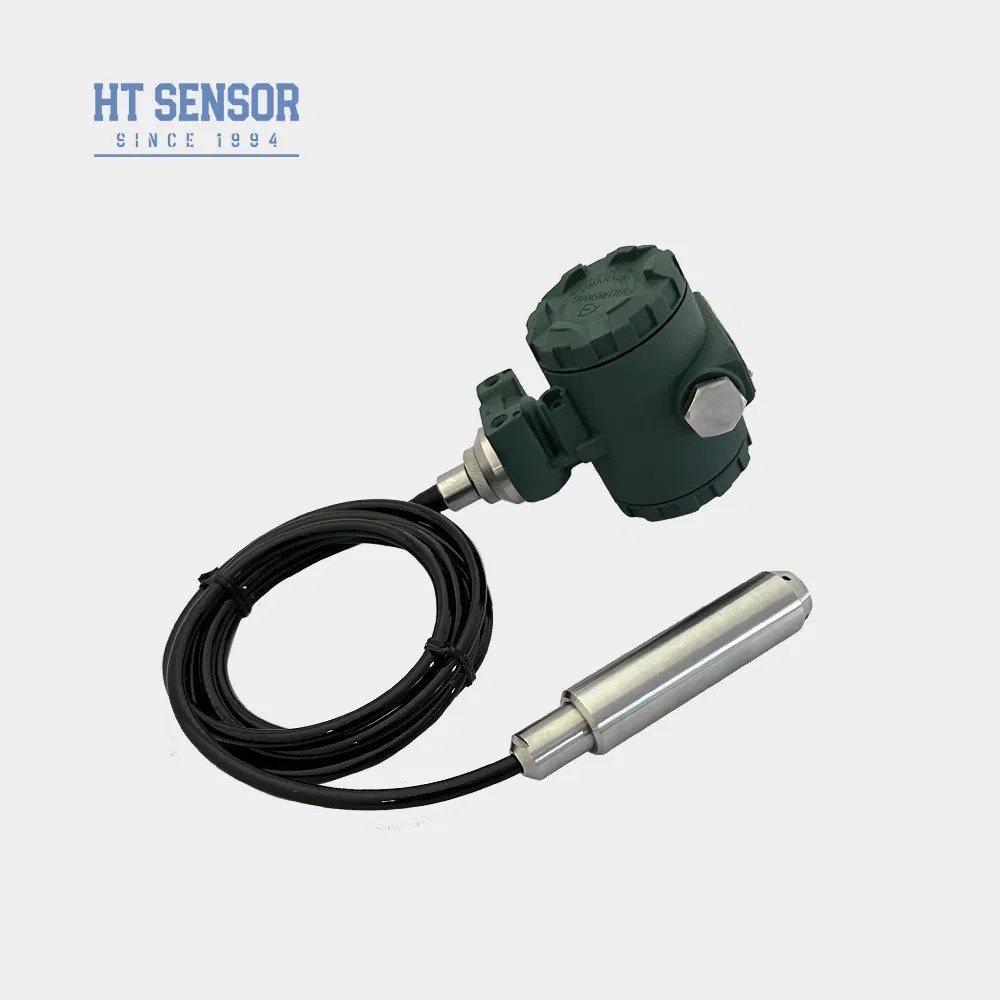

BH93420-III Water Level Transmitter
The BH93420-III water level transmitter features a highly precise piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure, which directly correlates to water level, and converts it into a standard signal output using amplification circuitry. This establishes a linear relationship between output signal and liquid level, ensuring precise and accurate water level measurement.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | 4 wire |
