| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 30 |
| उत्पादन में संकेत: | 4-20mA या RS485 | आईपी रेटिंग: | IP68 |
|---|---|---|---|
| शुद्ध वजन: | 0.3 किग्रा | डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील |
| शुद्धता: | 0.25%, 0.3%, 0.5% | माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर |
| अधिभार क्षमता: | रेटेड रेंज के ≤ 2 x | repeatability: | ± 0.03% (टाइप।) ± 0.05% एफएस (अधिकतम।) |
| दीर्घकालिक स्थिरता: | ± 0.2% एफ.एस./वर्ष (अधिकतम) | परिचालन तापमान: | -20~80ºC |
| भंडारण तापमान: | -30 ~ 100 thec | आवास सामग्री: | 1Cr18Ni9Ti |
| इन्सुलेशन प्रतिरोध: | > = 100m@@100vdc | विस्फोट प्रूफ रेटिंग: | ExiaIICT6 |
| केबल सामग्री: | पॉलीथीन, पॉलीयूरेथेन | ||
| प्रमुखता देना: | 4-20mA water level transmitter,316L stainless steel water level sensor,IP68 waterproof level transmitter |
||

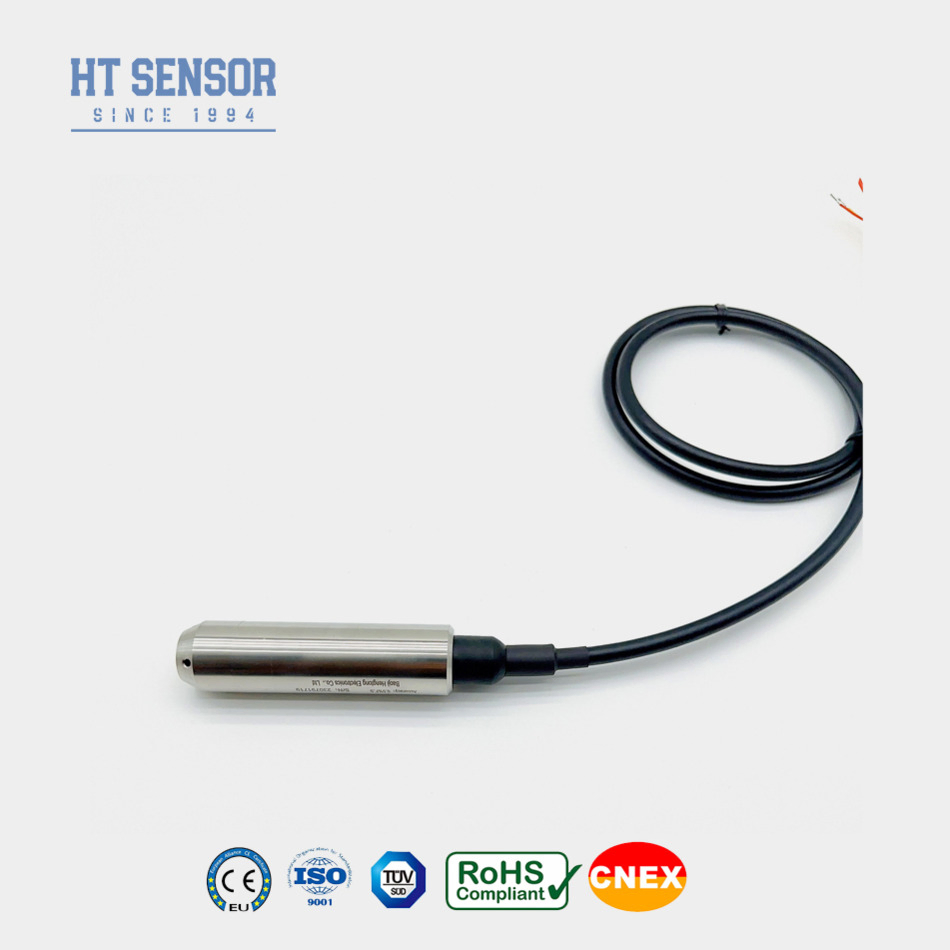

BH93420-I Diffused Silicon Water Sensor
This diffused silicon water sensor uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, the sensing part is completely sealed with stainless steel for excellent waterproof performance. Rigorous high and low-temperature compensation and aging tests ensure high reliability and stability.
| Measurement Range | 0~10m…400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Option |
|---|---|
| BH93420 | Basic Model |
| I | Pressure Transmitter |
| 0~10m…400m | Measurement Range |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure Type |
| A | Absolute Pressure Type |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel Material |
| 02 | 316L Stainless Steel Material |
| C1 | PE Cable Material |
| C2 | PU Cable Material |
A: High precision, durability, and excellent performance. Customization available.
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large orders.
A: 5~8 working days for standard models. Customized products may vary.
A: Competitive pricing with discounts for bulk orders or long-term partners.
A: 24-month warranty after shipment. After-sales responds within 24 hours with remote PC network support available.
