| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 18 |

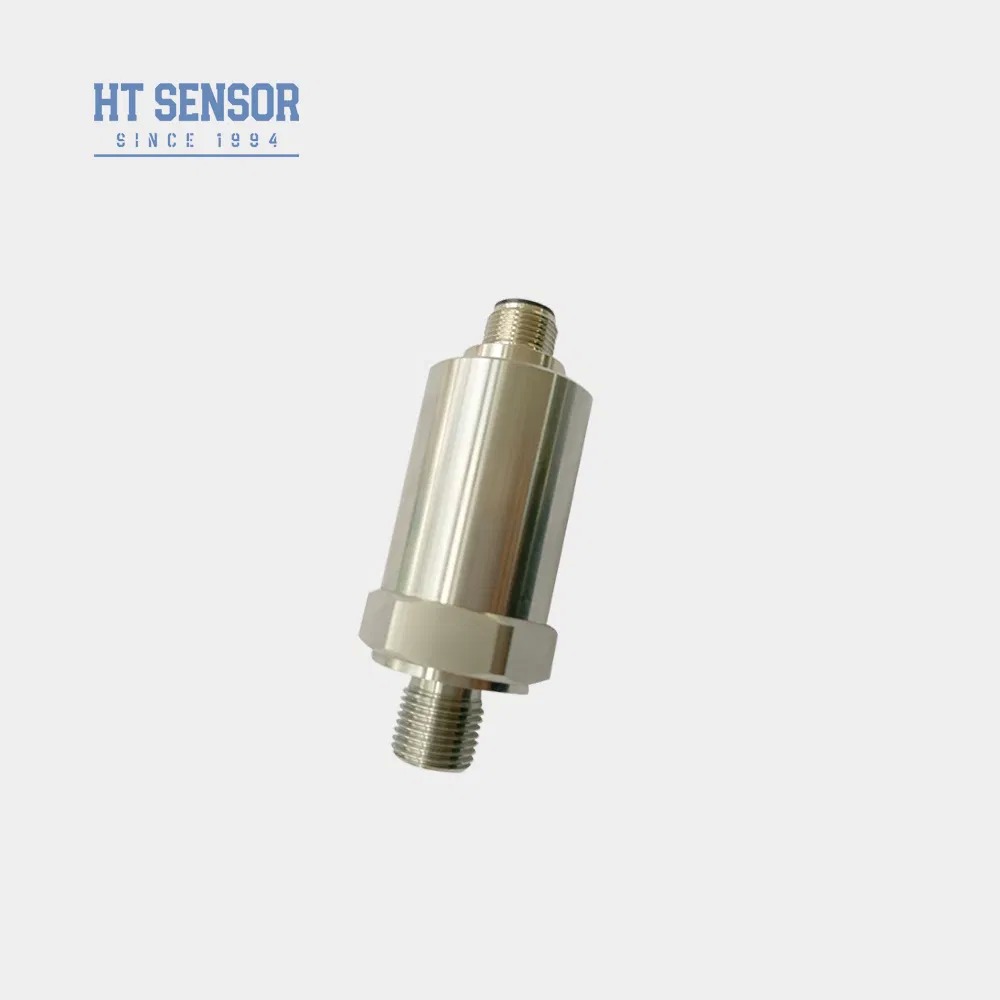

| प्रतिरूप संख्या।: | BP156 | मापक माध्यम: | तरल |
|---|---|---|---|
| सटीकता ग्रेड: | 0.2g | दबाव सीमा: | 0kpa~10kpa...5MPa |
| आईपी रेटिंग: | IP65 | दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव |
| आवास सामग्री: | 316L | मुआवजा तापमान: | -10ºC ~ 70ºC |
| डायाफ्राम सामग्री: | 316L | परिचालन तापमान: | -20 ~ C ~ 80ºC |
| भंडारण तापमान: | -40ºC ~ 120ºC | इन्सुलेशन प्रतिरोध: | 100 मीटर 100VDC |
| विस्फोट प्रूफ रेटिंग: | पूर्व डीबी आईआईसी टी6 जीबी | वज़न: | ~ 0.05 किग्रा |
| वोल्टेज आपूर्ति: | 12 ~ 30VDC, 5VDC | ||
| प्रमुखता देना: | BP156 pressure transmitter IP65,industrial pressure sensor 0.2G accuracy,liquid oil water pressure transmitter |
||
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.05kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
| BP15X | Analog Pressure Transmitter |
|
Outline Construction: 5 - Packard plug | 6 - Sealed Direct Output Cable 1.5 meters 7 - Mini Hirschmann Connector | 8 - Large Hirschmann Connector |
|
|
Measurement Range: 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa (X indicates actual measuring range) |
|
|
Power Supply: D1 - 24VDC | D2 - 5VDC | D3 - Other |
|
|
Output Signal: S1 - 4~20mADC | S2 - 1~5VDC | S3 - 0~5VDC | S4 - 0~10mADC S5 - 0~20mADC | S6 - 0~10VDC | S7 - 0.5~4.5VDC |
|
|
Pressure Connection: J1 - M20×1.5 | J2 - G1/2 | J3 - G1/4 | J4 - 7/16-20UNF | J5 - Others(¢50.4 Flange) |
|
|
Electrical Connection: B1 - Hirschmann | B2 - PG7 | B3 - Cable Sealed Outlet 1.5 meters | B4 - Other |
|
|
Pressure Type: G - Gauge Pressure | A - Absolute Pressure | S - Sealed Reference Pressure |
|
