| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 42 |
| उत्पादन में संकेत: | 4-20mA या RS485 | आईपी रेटिंग: | IP68 |
|---|---|---|---|
| शुद्ध वजन: | 0.3 किग्रा | डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील |
| शुद्धता: | 0.25%, 0.5% | माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर |
| दबाव प्रकार: | गेज दबाव, पूर्ण दबाव, सील दबाव | अधिभार क्षमता: | ≤ 2x रेटेड रेंज |
| repeatability: | ± 0.03% (टाइप।) ± 0.05% एफएस (अधिकतम।) | दीर्घकालिक स्थिरता: | ± 0.2% एफ.एस./वर्ष (अधिकतम) |
| परिचालन तापमान: | -20~80ºC | भंडारण तापमान: | -30 ~ 100 thec |
| आवास सामग्री: | 1Cr18Ni9Ti | इन्सुलेशन प्रतिरोध: | > = 100m@@100vdc |
| विस्फोट प्रूफ रेटिंग: | ExiaIICT6 | ||
| प्रमुखता देना: | 4-20mA submersible water level sensor,IP68 water level transmitter,high accuracy water level sensor |
||

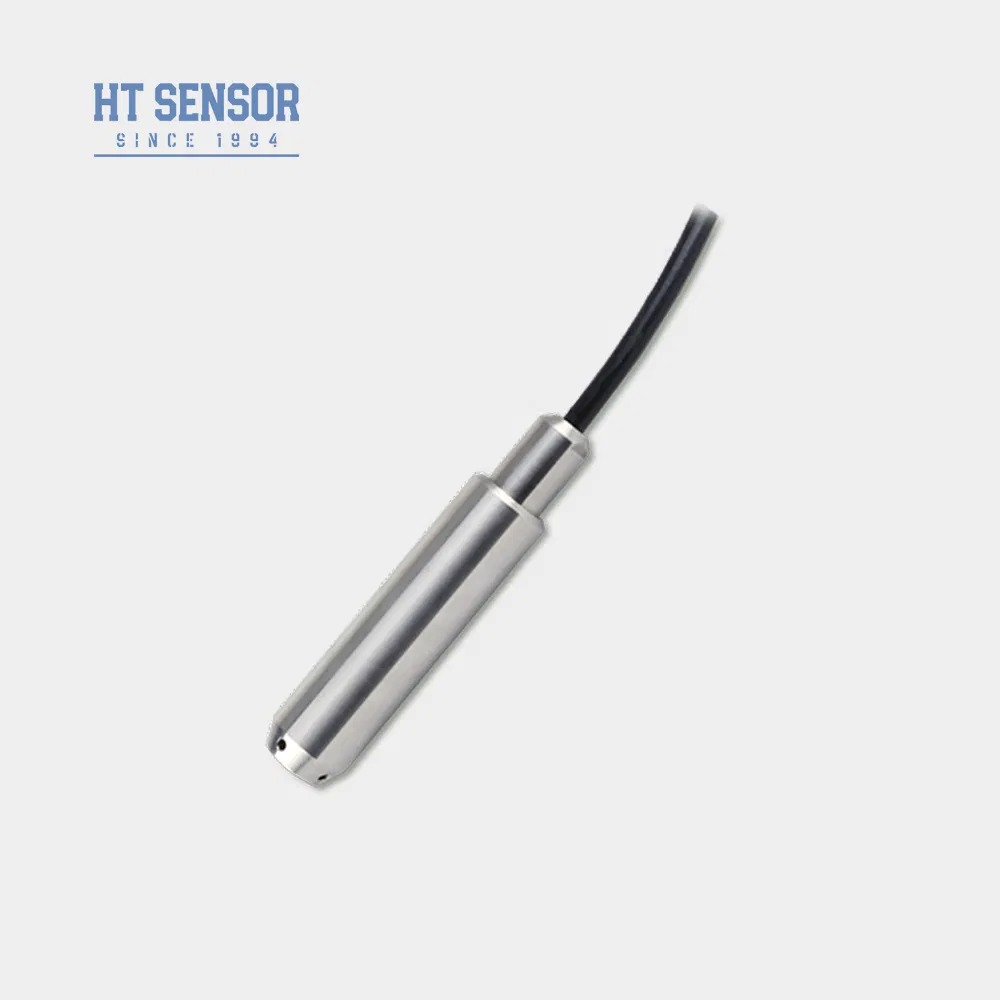

The BH93420-I water level sensor utilizes HT series diffused silicon isolation oil-filled core as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.
| Measurement Range | 0~10m...400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Protection Rating | IP67, IP68 |
| Explosion-proof Rating | ExiaIICT6 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Parameter | Options |
|---|---|
| Power Supply | D1: 24VDC | D2: 5VDC | D3: Other |
| Output Signal | S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485 |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
| Material | 01: 304 Stainless Steel | 02: 316L Stainless Steel |
| Cable Material | C1: PE | C2: PU |
