| प्रमाणन: | CE, RoHS, ISO9001 |
|---|---|
| न्यूनतम आदेश मात्रा: | 1 |
| मूल्य: | 88 |
| प्रतिरूप संख्या।: | BH93420-I | उत्पादन में संकेत: | 4-20mA या RS485 |
|---|---|---|---|
| आईपी रेटिंग: | IP68 | शुद्ध वजन: | 0.3 किग्रा |
| डायाफ्राम सामग्री: | 316L स्टेनलेस स्टील | दीर्घकालिक स्थिरता: | +-0.2% एफ.एस./वर्ष |
| संचालन तापमान।: | -20~80ºC | माप श्रेणी: | 0 ~ 10 मीटर… 400 मीटर |
| शुद्धता: | ± 0.25% (टाइप।) ± 0.5% (अधिकतम) | repeatability: | ± 0.03% (टाइप।) ± 0.05% एफएस (अधिकतम।) |
| हिस्टैरियस: | ± 0.03% (टाइप।) ± 0.05% एफएस (अधिकतम।) | शून्य बिंदु बहाव: | ± 1.5%एफएस (टाइप।) ± 2%एफएस (अधिकतम) |
| पूर्ण पैमाना बहाव: | ± 1.5%F.SR (टाइप)। 2%FS (अधिकतम।) | मुआवजा टेम्प.: | 0-50 (C (0-1M। 0-2M); 0-70 .C |
| विस्फोट प्रूफ रेटिंग: | ExiaIICT6 | ||
| प्रमुखता देना: | 4-20mA water level transmitter,IP68 stainless steel water sensor,water level transmitter with warranty |
||

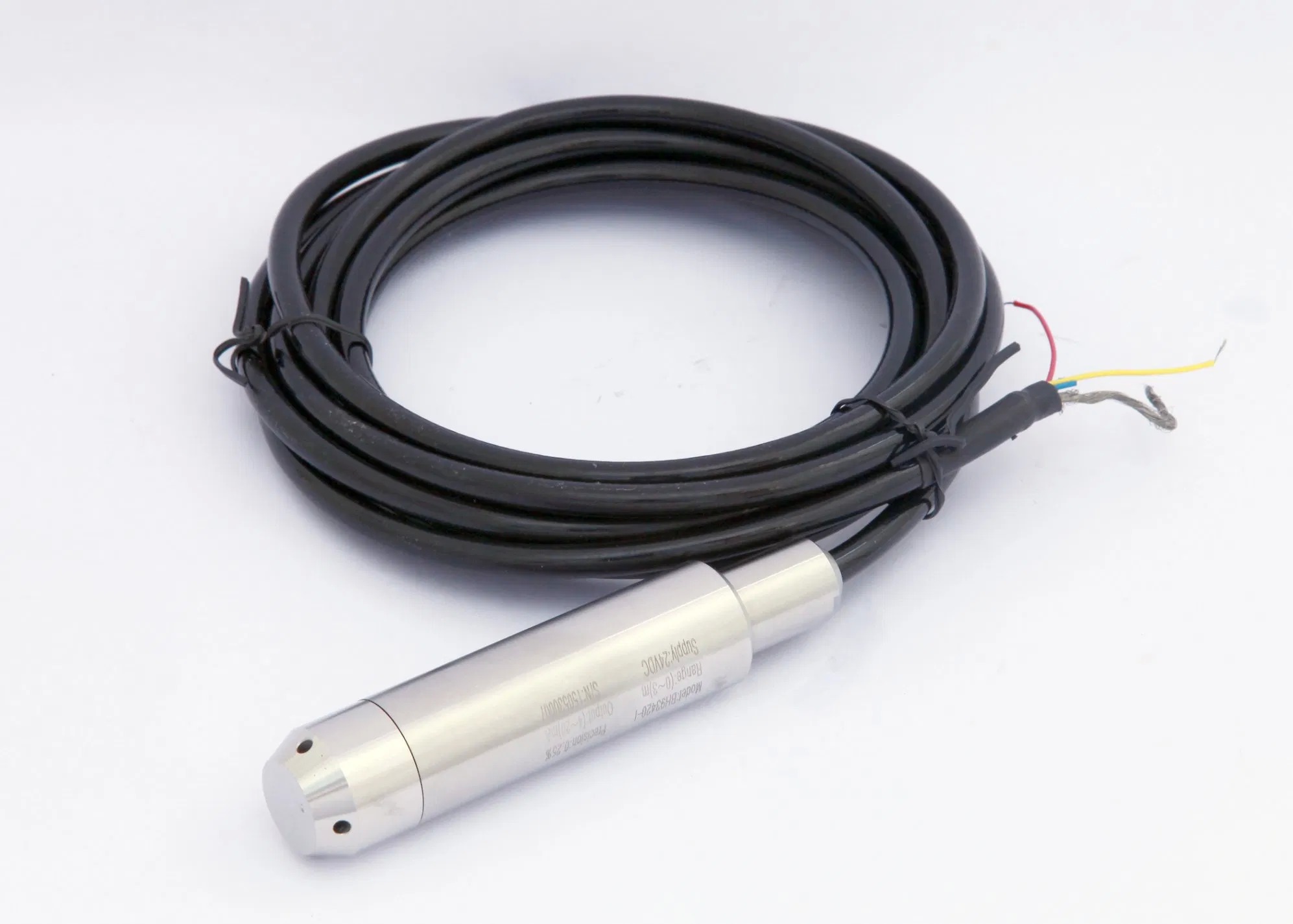

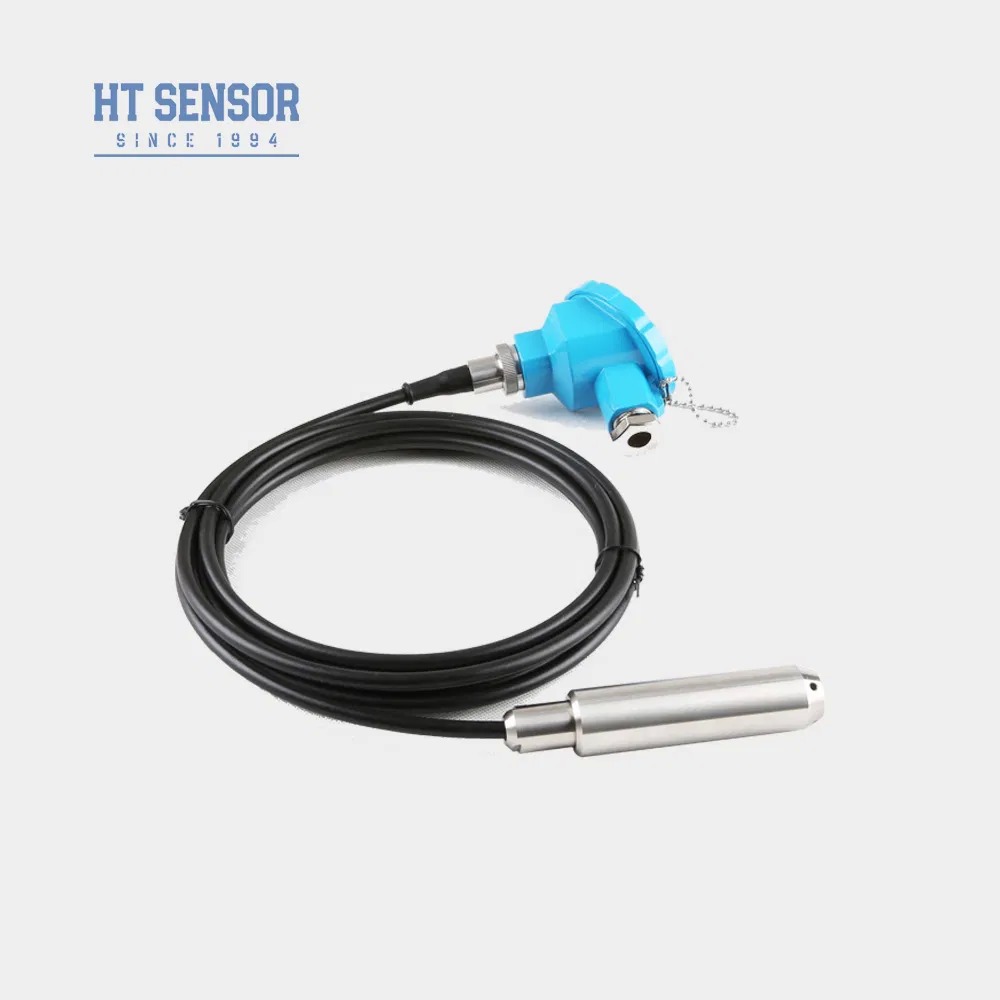

The BH93420-I is a water level transmitter that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, the sensing part immersed in water is completely sealed with stainless steel for excellent waterproof performance. Rigorous high and low-temperature compensation and aging tests ensure high reliability and stability.
| Measurement Range | 0~10m...400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Option |
|---|---|
| BH93420 | Base Model |
| I | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| C1 | PE Cable |
| C2 | PU Cable |
